Full Review of Shimbol M5: Your Reliable Assistant in the World of Video Filming

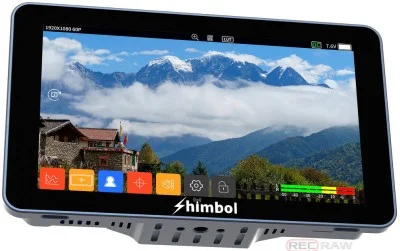

Dear friends, we are pleased to share with you details about a new product that will undoubtedly change your approach to video shooting - the Shimbol M5 monitor. This 5.5-inch touchscreen monitor with 4K HDR video support is an essential tool for every videographer. Its 1200 nits brightness, 1000:1 contrast ratio and IPS display with viewing angles up to 160 degrees provide exceptional picture quality in any environment.

Technical Specifications Shimbol M5

• Screen diagonal: 5.5 inches
• Screen resolution: 1920 x 1080 pixels
• Maximum brightness: 1200 nits
• Contrast: 1000:1
• Color space coverage: 100% Rec.709
• Color accuracy: Delta E maximum 0.6
• Housing material: Aluminum
• Dimensions: 146.6 x 87.6 x 26.5 mm
• Weight: 278.5 grams
• Inputs/Outputs: HDMI input and output, DC input 6.5-16.8V
• Additional ports: USB Type-C for firmware updates, SD card for loading LUT files, 3.5mm audio jack
• Power: Built-in board for Sony NP-F batteries
• Mounting: 1/4"-20 mounting point with locating pins
• Monitoring functions: False color, waveform, vectorscope, histogram, peaking, anamorphic de-squeeze, 3D LUT support and others.

Professional Monitoring Tools

The Shimbol M5 monitor menu offers you everything you need to control the color and exposure of a scene:

• Waveform, RGB Parade, Histogram, Vector Oscilloscope: To facilitate color and exposure monitoring.
• Adjustable Peaking and Zoom Functions: Help with focusing.
• Loading 3D LUTs: Via SD card, adjusting gamma from 2.2 to 2.6, switching HLG and PQ modes for HDR monitoring, and adjusting color temperature.

Advanced monitoring features are essential for professionals to achieve ideal image quality. The vector oscilloscope and waveform enable precise control of color balance and exposure, which is critical when shooting commercials, short films and music videos.

High Quality Images

The 1920 x 1080 resolution screen with 1200 nits brightness ensures clear and bright images even in direct sunlight. This is ideal for outdoor shooting, where the sun is often an obstacle. High brightness and color accuracy make the monitor ideal for vlogging and outdoor content creation. Features like peaking and false color help even beginners create quality content with proper exposure and focus.

Expanded Opportunities for Creativity

With the ability to load up to 99 custom LUTs and included eight log monitoring LUTs, Shimbol M5 gives you room to experiment with the color and style of your videos. This means you can preview and adjust the color scheme in real time, choosing the perfect tone while shooting. The monitor on which testing was carried out had pre-installed LUTs: S-Log2, S-Log3, Redlogfilm, REDLog, Log-C, C-Log, Log-3G10, V-LOG,

Up to LUTS can be loaded via the SD card slot. The SD card must be formatted in FAT32 or NTFS.

Anamorphic De-squeeze

For lovers of the cinematic look, anamorphic de-squeeze will allow you to correctly display shooting with anamorphic lenses.

Durability and Reliability

The aluminum body gives the monitor not only an elegant appearance, but also ensures its strength and durability, and also effectively dissipates heat. This is especially important for filming in dynamic and not always predictable conditions. Passive cooling in the aluminum housing eliminates the need for fans, making the monitor completely silent. This is especially valuable in environments where every sound counts, such as when filming interviews or documentaries.

Buttons and Ports

• Top: Power button and three programmable function buttons.
• Left Side: Two HDMI 1.4 ports (input and output) and DC input for extended operation.
• Right Side: SD card slot for loading up to 99 custom LUTs, adjacent 1/4"-20 thread for vertical or side mounting, and 3.5mm input for audio monitoring.
• Bottom: Another 1/4"-20 thread for a traditional camera mount and a USB-C port for firmware updates.
• Rear: Board for L/F970 series batteries for mobile power.

Three programmable function buttons on the top of the monitor let you quickly turn on your most used monitoring tools, saving you time and making your work as efficient as possible. Having an audio input and displaying audio levels on the screen also makes it easy to control the audio of your videos.

Who is Shimbol M5 suitable for?

For Filmmakers

With HDR support and high color accuracy, Shimbol M5 is an indispensable tool for filmmakers, allowing them to achieve impressive results when working with color and light.

For Vloggers

Lightness, portability and ease of use make this monitor an ideal choice for video bloggers who need to quickly and efficiently shoot content in a variety of conditions.

For Travelers

Low power consumption and battery operation make the M5 an excellent companion for long trips, where every gram and every watt counts.

For Beginner Videographers

Shimbol M5 offers an intuitive interface and many automatic features to help beginners master professional monitoring and surveying tools.

Conclusion

The Shimbol M5 is a multi-functional tool that opens up wide possibilities for you to realize creative ideas and reach new heights in videography. It combines advanced technology, convenience
